Udolahr
 Post subject: Bugatti part .
PostPosted: Sun May 29, 2011 1:38 pm
Offline

Joined: Sun Aug 16, 2009 3:17 am
Posts: 1041
Location: Baden-Baden Germany

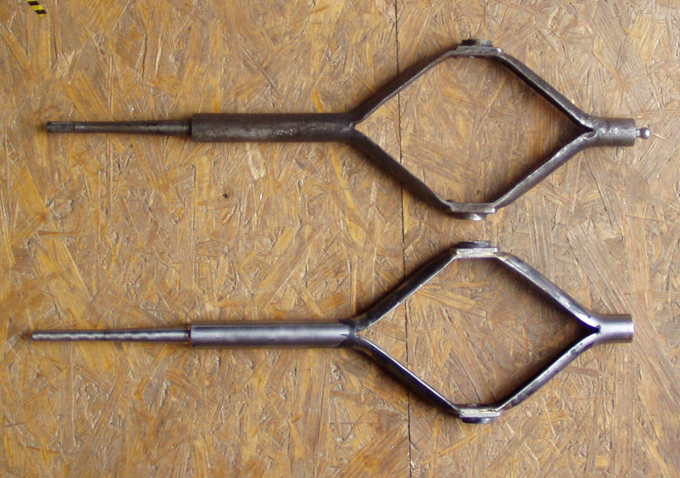

What is the name in English for this part . It is not so easy to make if you like to have it perfect straight and exact like in the drawing . I had to make some special tools for it . The part at the right is an original .


Attachments:
P1010342.JPG [ 273.16 KiB | Viewed 9180 times ]
Top
 Profile

Herman
 Post subject: Re: Bugatti part .
PostPosted: Sun May 29, 2011 4:56 pm
Offline
Site Admin
User avatar

Joined: Wed May 12, 2004 4:26 pm
Posts: 2620
Location: Reeuwijk, The Netherlands
A yoke? (not a joke)

_________________
Vive la Marque !!
Top
 Profile

Udolahr
 Post subject: Re: Bugatti part .
PostPosted: Sun May 29, 2011 5:30 pm
Offline

Joined: Sun Aug 16, 2009 3:17 am
Posts: 1041
Location: Baden-Baden Germany
like a clutch bearing yoke ?
Top
 Profile

Herman
 Post subject: Re: Bugatti part .
PostPosted: Sun May 29, 2011 6:13 pm
Offline
Site Admin
User avatar

Joined: Wed May 12, 2004 4:26 pm
Posts: 2620
Location: Reeuwijk, The Netherlands
Possibly, "yoke" is very general. It can be about anything with a forked shape.

_________________
Vive la Marque !!
Top
 Profile

Udolahr
 Post subject: Re: Bugatti part .
PostPosted: Sun May 29, 2011 6:18 pm
Offline

Joined: Sun Aug 16, 2009 3:17 am
Posts: 1041
Location: Baden-Baden Germany
yoke in german is Joch . A Joch can be anything . Or a Joch is something , what keeps somthing in place .
Top
 Profile

Udolahr
 Post subject: Re: Bugatti part .
PostPosted: Wed Jun 08, 2011 11:54 pm
Offline

Joined: Sun Aug 16, 2009 3:17 am
Posts: 1041
Location: Baden-Baden Germany

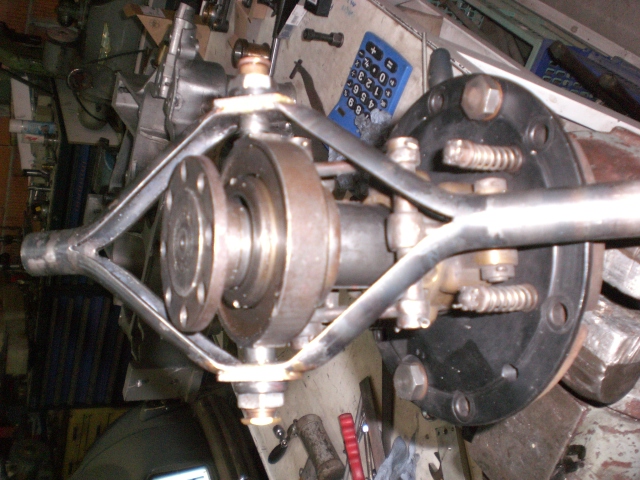

I think it looks very original .


Attachments:
CIMG3101.JPG [ 234.46 KiB | Viewed 9048 times ]
Top
 Profile

Udolahr
 Post subject: Re: Bugatti part .
PostPosted: Thu Jun 16, 2011 5:59 pm
Offline

Joined: Sun Aug 16, 2009 3:17 am
Posts: 1041
Location: Baden-Baden Germany

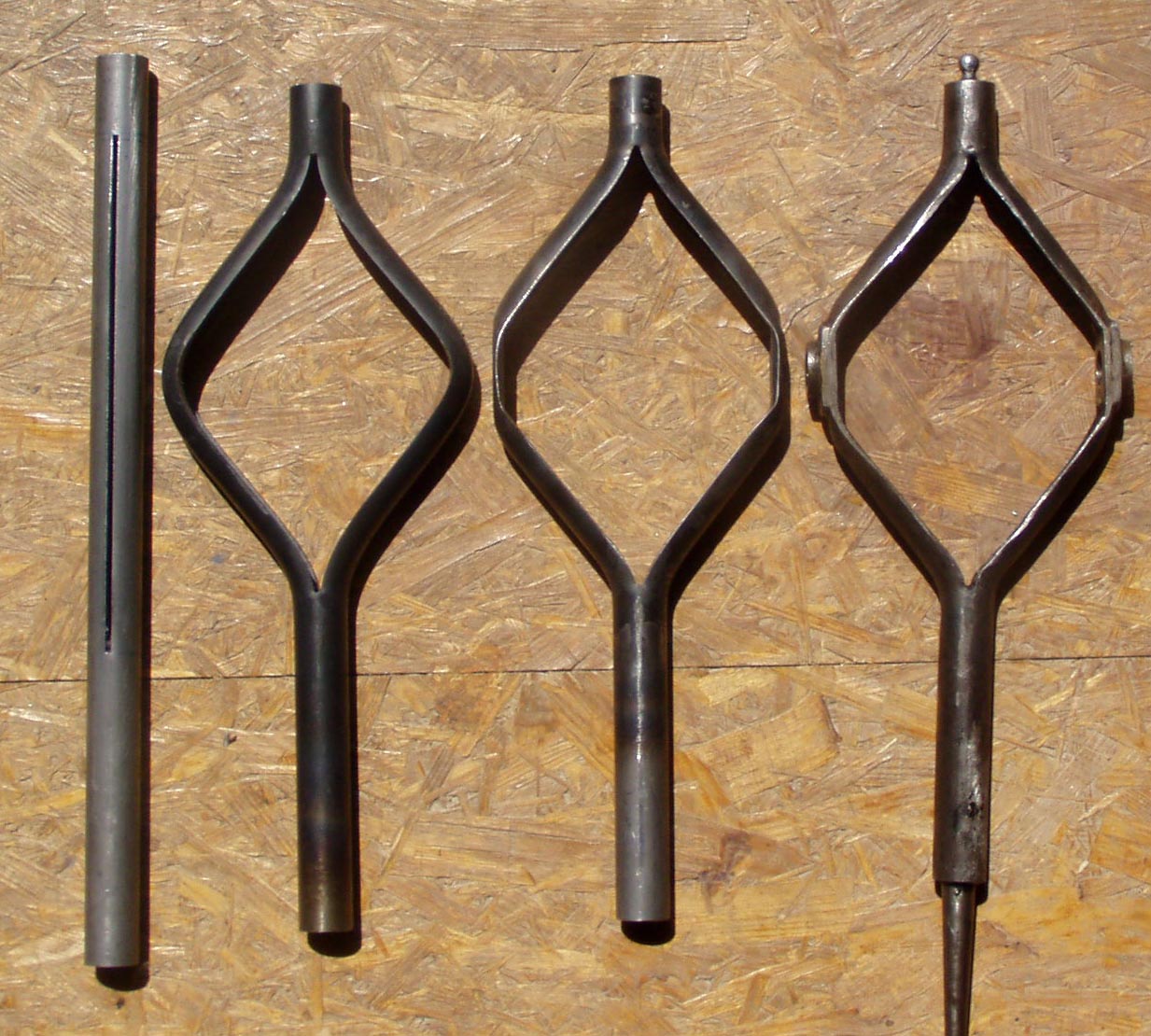

first one is ready . The top one is original . Tube 22mm x inside 14mm


Attachments:
Bugatti Yoke.jpg
Bugatti Yoke.jpg [ 371.09 KiB | Viewed 8971 times ]
Top
 Profile

nicefloor
 Post subject: Re: Bugatti part .
PostPosted: Thu Jun 16, 2011 9:54 pm
Offline

Joined: Tue Jan 19, 2010 9:25 pm
Posts: 50
Udo - looks good. What did you use to cut the slit in the tubing? Just curious.

Dan
Top
 Profile

Udolahr
 Post subject: Re: Bugatti part .
PostPosted: Fri Jun 17, 2011 3:18 am
Offline

Joined: Sun Aug 16, 2009 3:17 am
Posts: 1041
Location: Baden-Baden Germany
in a milling machine . disk diameter 80mm , 2,5mm wide , 50 tooth.
