 Post subject: Engine question
PostPosted: Wed May 06, 2015 1:20 pm
Offline

Joined: Sun Aug 16, 2009 3:17 am
Posts: 1041
Location: Baden-Baden Germany

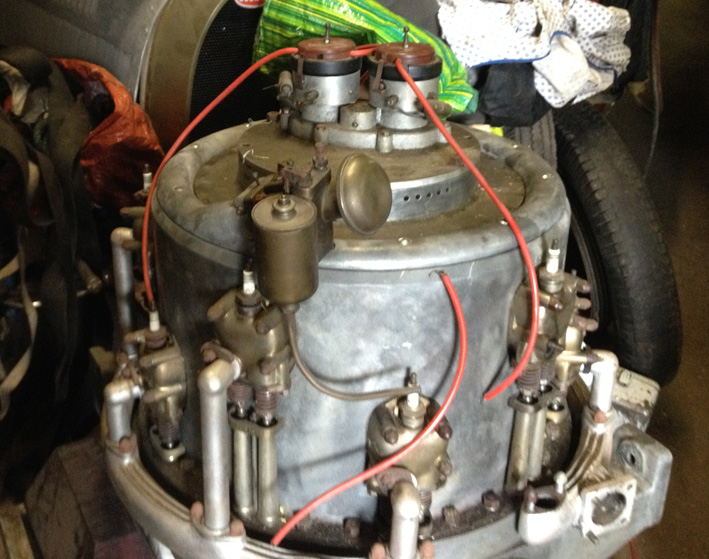

Who has any info about this engine .


Attachments:
radial.jpg [ 178.24 KiB | Viewed 4050 times ]
Top
 Profile

 Post subject: Re: Engine question
PostPosted: Wed May 06, 2015 1:31 pm
Offline
User avatar

Joined: Thu Jan 12, 2006 9:18 am
Posts: 1008
Location: Netherlands, Nieuwegein
Is this the Rotary head engine? 4 cylinders on two crankshafts, set-up in a square, with the head rotating on top of it (Patent applied for by Roland Bugatti).

Where is this engine now?

_________________
www.BugattiPage.com
www.BugattiRevue.com
www.BugattiAircraft.com


Top
 Profile

 Post subject: Re: Engine question
PostPosted: Thu May 07, 2015 7:11 am
Offline

Joined: Wed Jul 15, 2009 5:38 pm
Posts: 642
Udo/Jaap: I see 5 spark plugs in the photo so I would expect not a 4 but an 8 cylinder ?
I see no rotating head.

Form further observation:
this could be a 8/10 cilinder radial engine (2 rows of 4/5) sidevalve
Cylinders enclosed in a jacket
Pushrods driven by a ring ?
Common exhaust
Inlet ????

_________________
"Barttore has left the forum"


Top
 Profile

 Post subject: Re: Engine question
PostPosted: Thu May 07, 2015 11:50 am
Offline

Joined: Sun Aug 16, 2009 3:17 am
Posts: 1041
Location: Baden-Baden Germany
10 cylinder , 2 rows , side valve , bronze cylinder heads ,sidevalve with pushrods , complicated intake system with one carburetor for all , normal exhaust system , 2 magnetos , underneath a 90 degree gearbox with a vertical shaft to the gearbox .
but who made it and for what kind of car ?


Top
 Profile

 Post subject: Re: Engine question
PostPosted: Thu May 07, 2015 12:32 pm
Offline
User avatar

Joined: Thu Jan 12, 2006 9:18 am
Posts: 1008
Location: Netherlands, Nieuwegein
I thought it was, on this forum, a Bugatti engine.

It must be some kind of swash-plate engine, though I do not know the type.

As this seem to be a new quizz:
Who does recognize this V20, one center camshaft (automatic inlet) engine??




_________________
www.BugattiPage.com
www.BugattiRevue.com
www.BugattiAircraft.com


Top
 Profile

 Post subject: Re: Engine question
PostPosted: Thu May 07, 2015 1:53 pm
Offline

Joined: Sun Aug 16, 2009 3:17 am
Posts: 1041
Location: Baden-Baden Germany
Because this engine is in a big private Bugatti collection , I thought somebody know about it , and maybe it is a Bugatti design .Your 20 cylinder aircraft engine looks very similar to an antoinette engine . I am used to work with this kind of engines .


Top
 Profile
