 Post subject: close but no sigar...
PostPosted: Sat Oct 16, 2010 11:58 am
Offline

Joined: Wed Jul 15, 2009 5:38 pm
Posts: 642
Hideous !
http://www.f40.com/inventorymanager.php ... &Id=271417

_________________
"Barttore has left the forum"


Top
 Profile

 Post subject: Re: close but no sigar...
PostPosted: Sat Oct 16, 2010 6:31 pm
Offline
Site Admin
User avatar

Joined: Wed May 12, 2004 4:26 pm
Posts: 2620
Location: Reeuwijk, The Netherlands
Great! Kudos for the coachbuilder. Would this be one of the polyester bodies?

The interior? Hmmm, not my liking.

_________________
Vive la Marque !!


Top
 Profile

 Post subject: Re: close but no sigar...
PostPosted: Sun Oct 17, 2010 10:04 am
Offline
User avatar

Joined: Thu Jan 12, 2006 9:18 am
Posts: 1008
Location: Netherlands, Nieuwegein
The body probably is polyester.

I looked at all the exterior pictures, it seems that they got the shape of the body almost 100% right.

Just buy an old Galibier, and put the engine in this one, and you're in business.

Quite expensive, though.

_________________
www.BugattiPage.com
www.BugattiRevue.com
www.BugattiAircraft.com


Top
 Profile

 Post subject: Re: close but no sigar...
PostPosted: Wed Oct 20, 2010 1:10 pm
Offline
User avatar

Joined: Tue Nov 04, 2008 5:07 pm
Posts: 1018
Location: Vienne France
J.J.Horst wrote:
The body probably is polyester.

I looked at all the exterior pictures, it seems that they got the shape of the body almost 100% right.

Just buy an old Galibier, and put the engine in this one, and you're in business.

Quite expensive, though.

Interesting cosmetic work on a Jaguar 3.8 litre motor ! This is probably quite a quick car.Unusually for an american repro,they have at least got the steering wheel on the correct side of the car.


Top
 Profile

 Post subject: Re: close but no sigar...
PostPosted: Wed Oct 20, 2010 3:28 pm
Offline

Joined: Wed Aug 22, 2007 1:12 pm
Posts: 2285
A Jaguar engine in a genuine Bugatti, that it in former times already gave:
T35A #4540


Top
 Profile

 Post subject: Re: close but no sigar...
PostPosted: Wed Oct 20, 2010 4:43 pm
Offline
User avatar

Joined: Tue Nov 04, 2008 5:07 pm
Posts: 1018
Location: Vienne France
Uwe wrote:
A Jaguar engine in a genuine Bugatti, that it in former times already gave:
T35A #4540

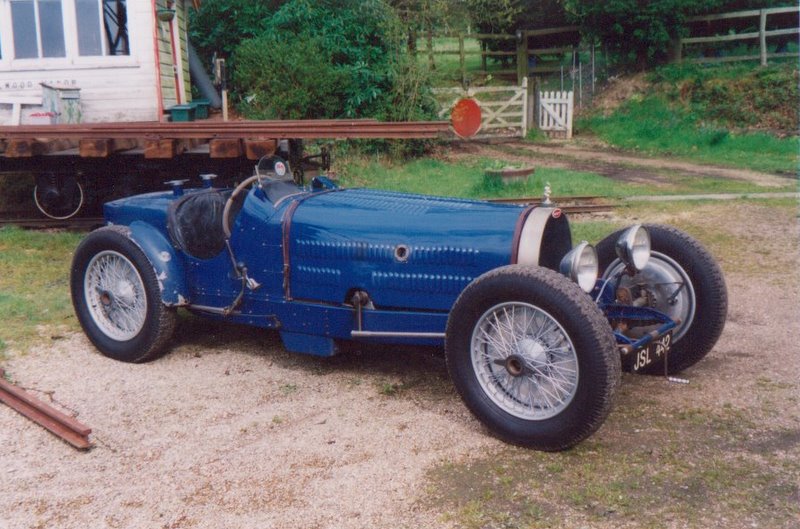

Do not forget my own Jaguar powered Bugatti,and remember that the american car has no bugatti parts at all.


Attachments:
DSC02866.JPG [ 151.28 KiB | Viewed 18160 times ]
image-22.jpg [ 108.19 KiB | Viewed 18160 times ]
image-14.jpg [ 115.51 KiB | Viewed 18160 times ]
Top
 Profile

 Post subject: Re: close but no sigar...
PostPosted: Wed Oct 20, 2010 5:25 pm
Offline

Joined: Wed Aug 22, 2007 1:12 pm
Posts: 2285
Lazarus wrote:
Do not forget my own Jaguar powered Bugatti,and remember that the american car has no bugatti parts at all.


A great car, and a great work Image
Do you have more information :?:


Top
 Profile

 Post subject: Re: close but no sigar...
PostPosted: Wed Oct 20, 2010 8:03 pm
Offline
User avatar

Joined: Tue Nov 04, 2008 5:07 pm
Posts: 1018
Location: Vienne France
Uwe wrote:
Lazarus wrote:
Do not forget my own Jaguar powered Bugatti,and remember that the american car has no bugatti parts at all.


A great car, and a great work Image
Do you have more information :?:

T50 front axle and back axle gearbox.Modified chassis to form T54 shape.


Top
 Profile

 Post subject: Re: close but no sigar...
PostPosted: Thu Oct 21, 2010 7:20 am
Offline

Joined: Wed Aug 22, 2007 1:12 pm
Posts: 2285
Lazarus wrote:
T50 front axle and back axle gearbox.Modified chassis to form T54 shape.



Top
 Profile

 Post subject: Re: close but no sigar...
PostPosted: Thu Oct 21, 2010 9:39 am
Offline
User avatar

Joined: Tue Nov 04, 2008 5:07 pm
Posts: 1018
Location: Vienne France
Uwe wrote:
Lazarus wrote:
T50 front axle and back axle gearbox.Modified chassis to form T54 shape.

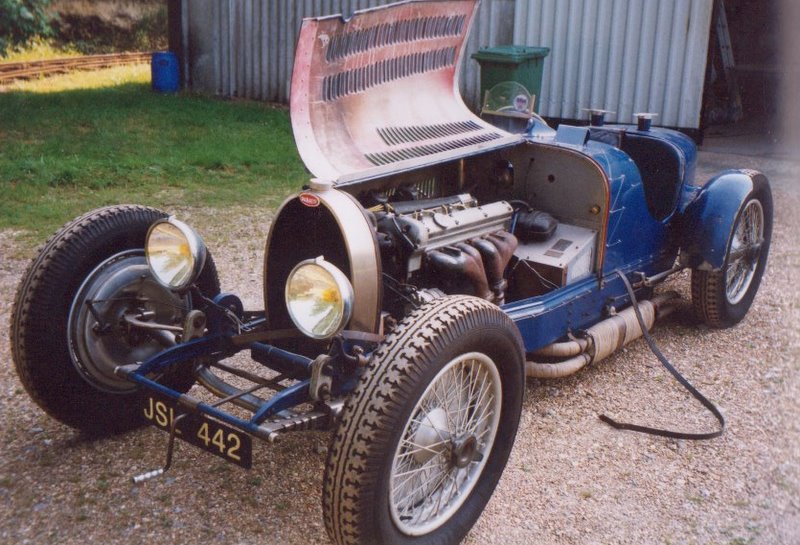

The problem with the carburettors can be clearly seen.I used angled carbs from an AH 3000.I did not want to cut holes in the bonnet.


Top
 Profile

 Post subject: Re: close but no sigar...
PostPosted: Thu Oct 21, 2010 11:03 am
Offline

Joined: Wed Aug 22, 2007 1:12 pm
Posts: 2285
Lazarus wrote:
The problem with the carburettors can be clearly seen.I used angled carbs from an AH 3000.I did not want to cut holes in the bonnet.


I am again and again very impressive by the emergence of such cars. It requires much experience and ability. I would publish gladly the photos in the photo side. But as which Type one can that car designate?

PS: I love Austin Healey :P


Top
 Profile

 Post subject: Re: close but no sigar...
PostPosted: Thu Oct 21, 2010 11:51 am
Offline
User avatar

Joined: Tue Nov 04, 2008 5:07 pm
Posts: 1018
Location: Vienne France
Uwe wrote:
Lazarus wrote:
The problem with the carburettors can be clearly seen.I used angled carbs from an AH 3000.I did not want to cut holes in the bonnet.


I am again and again very impressive by the emergence of such cars. It requires much experience and ability. I would publish gladly the photos in the photo side. But as which Type one can that car designate?

The car was registered quite rightly as a Type 50 special.There was so much original bugatti it could not be registered as anything else.The MK IIa healey has two 2 inch SU carburettors with the distinctive angle which made them fit nicely under the Bugatti bonnet.The bonnet of this car came from one of the T54 cars.Made probably in the 1950's when a different engine was fitted [also a jaguar !]


Top
 Profile

 Post subject: Re: close but no sigar...
PostPosted: Thu Oct 21, 2010 11:59 am
Offline
User avatar

Joined: Tue Nov 04, 2008 5:07 pm
Posts: 1018
Location: Vienne France

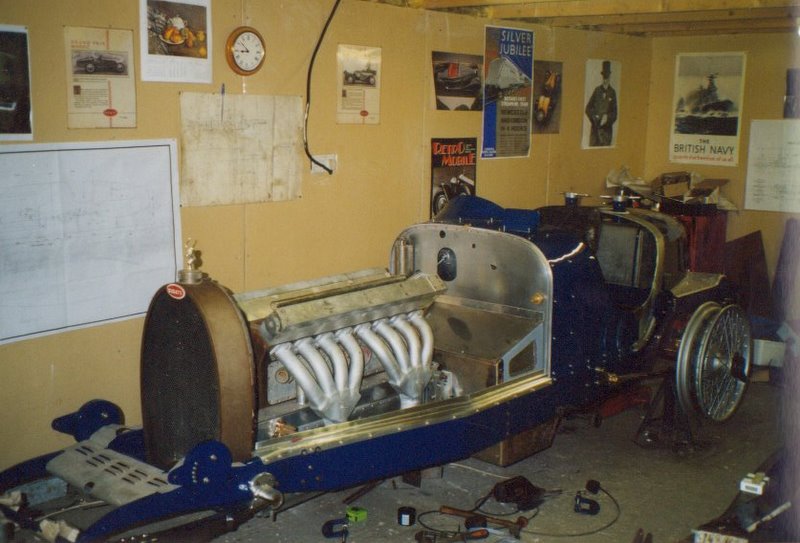

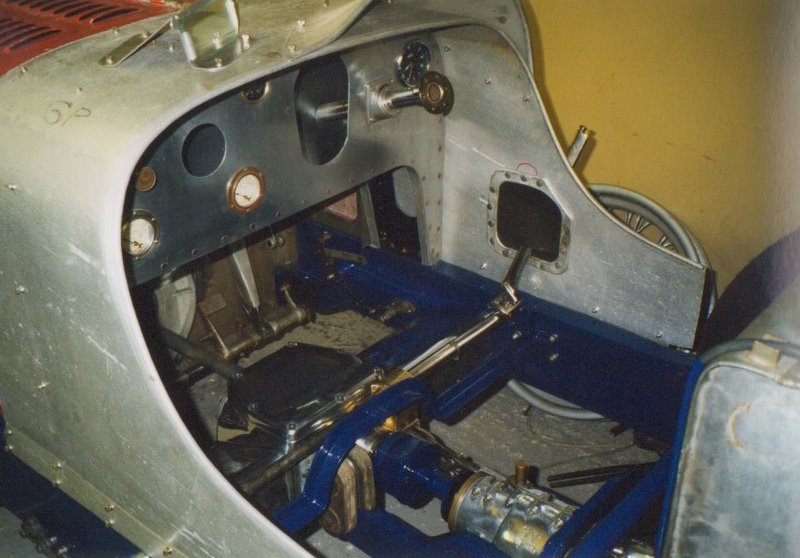

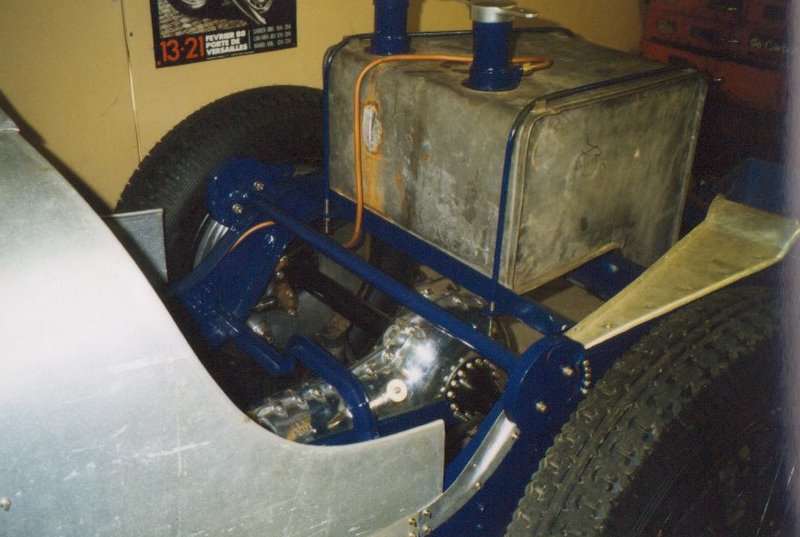

I have always loved making cars like this.As you can see the first idea was to use the T50 motor.Sadly the block had severe damage in one cylinder which would have been very expensive to repair.As the car was for me to play with,and as I had a rebuilt Jaguar 3.8 engine in hand I decided to use it.The T54 gearbox case is empty except for the selector rods.These are connected to the T50 gearbox at the rear.This took some time to arrange and design,but once finished gave no trouble ever afterwards.This was one of the most exciting cars I ever drove.Very fast in a straight line,but as Bugatti discovered not so good in corners.At only about 5 inches long,this was probably the shortest Bugatti propshaft ever.


Attachments:
image-5.jpg [ 79.99 KiB | Viewed 18126 times ]
image-7.jpg [ 77.03 KiB | Viewed 18126 times ]
image-30.jpg [ 79.94 KiB | Viewed 18126 times ]
Top
 Profile

 Post subject: Re: close but no sigar...
PostPosted: Thu Oct 21, 2010 12:31 pm
Offline

Joined: Wed Aug 22, 2007 1:12 pm
Posts: 2285
Lazarus wrote:
I have always loved making cars like this.As you can see the first idea was to use the T50 motor.Sadly the block had severe damage in one cylinder which would have been very expensive to repair.As the car was for me to play with,and as I had a rebuilt Jaguar 3.8 engine in hand I decided to use it.The T54 gearbox case is empty except for the selector rods.These are connected to the T50 gearbox at the rear.This took some time to arrange and design,but once finished gave no trouble ever afterwards.This was one of the most exciting cars I ever drove.Very fast in a straight line,but as Bugatti discovered not so good in corners.At only about 5 inches long,this was probably the shortest Bugatti propshaft ever.


That is my fear 8) I can full-see myself at such photos :P


Top
 Profile

 Post subject: Re: close but no sigar...
PostPosted: Thu Oct 21, 2010 1:49 pm
Offline
Site Admin
User avatar

Joined: Wed May 12, 2004 4:26 pm
Posts: 2620
Location: Reeuwijk, The Netherlands
You should have kept 2 gearboxes! Ideal for cross-country and off road racing!

_________________
Vive la Marque !!


Top
