 Post subject: Royale Progress
PostPosted: Wed May 02, 2012 6:30 pm
Offline

Joined: Sun Aug 16, 2009 3:17 am
Posts: 1041
Location: Baden-Baden Germany

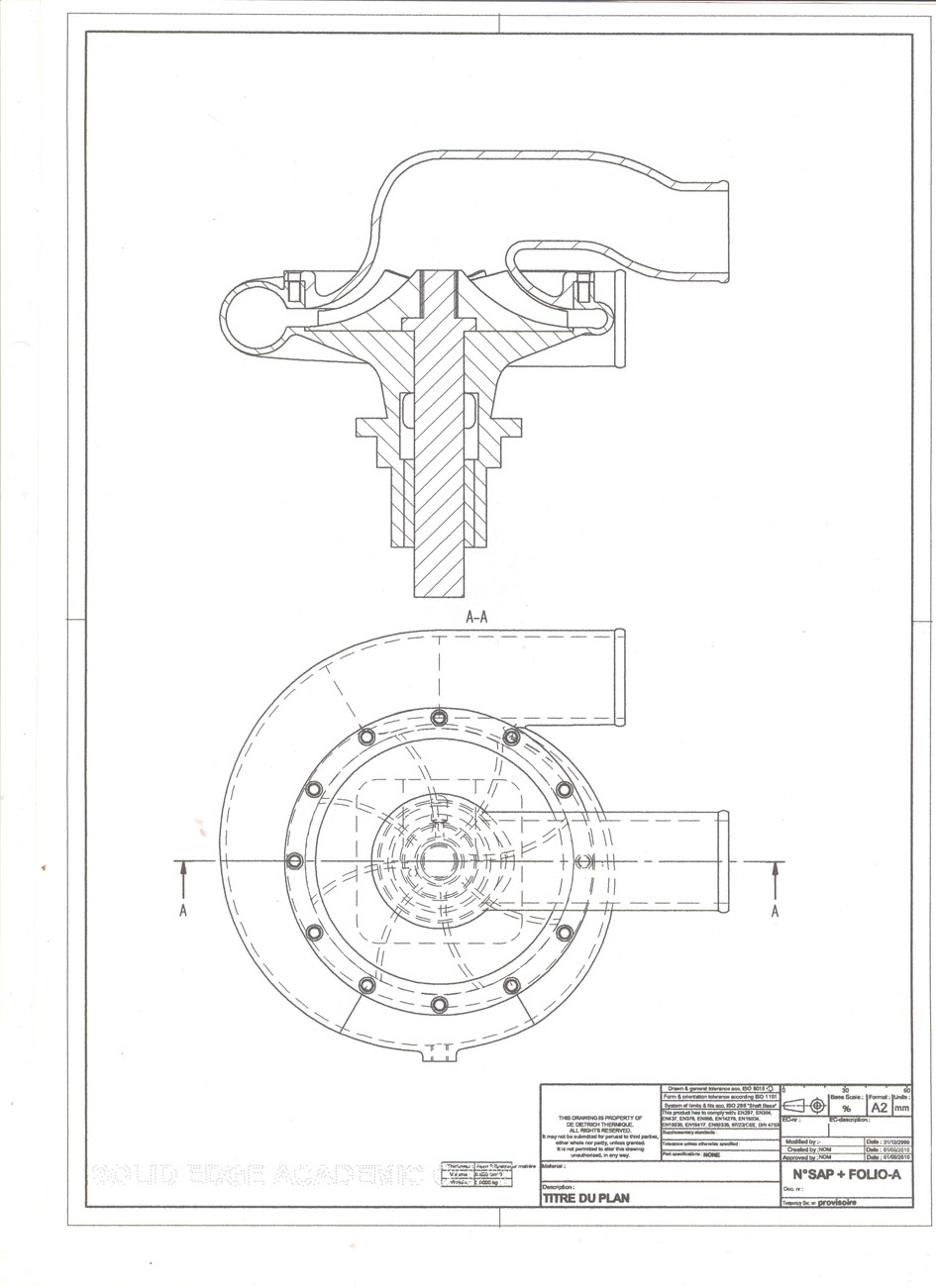

I got most drawings ready for the missing parts


Attachments:
udo plan 003 a.jpg
udo plan 003 a.jpg [ 294.53 KiB | Viewed 8475 times ]
Top
 Profile

 Post subject: Re: Royale Progress
PostPosted: Fri May 04, 2012 7:39 am
Offline

Joined: Wed Sep 03, 2008 8:56 am
Posts: 82
Are you building a replica Royale?


Top
 Profile

 Post subject: Re: Royale Progress
PostPosted: Fri May 04, 2012 7:26 pm
Offline

Joined: Wed Aug 13, 2008 12:10 am
Posts: 334
Sorry to p*** on your strawberries Udo, but the water pump you have drawn is totally wrong.


Top
 Profile

 Post subject: Re: Royale Progress
PostPosted: Fri May 04, 2012 9:30 pm
Offline

Joined: Sun Aug 16, 2009 3:17 am
Posts: 1041
Location: Baden-Baden Germany

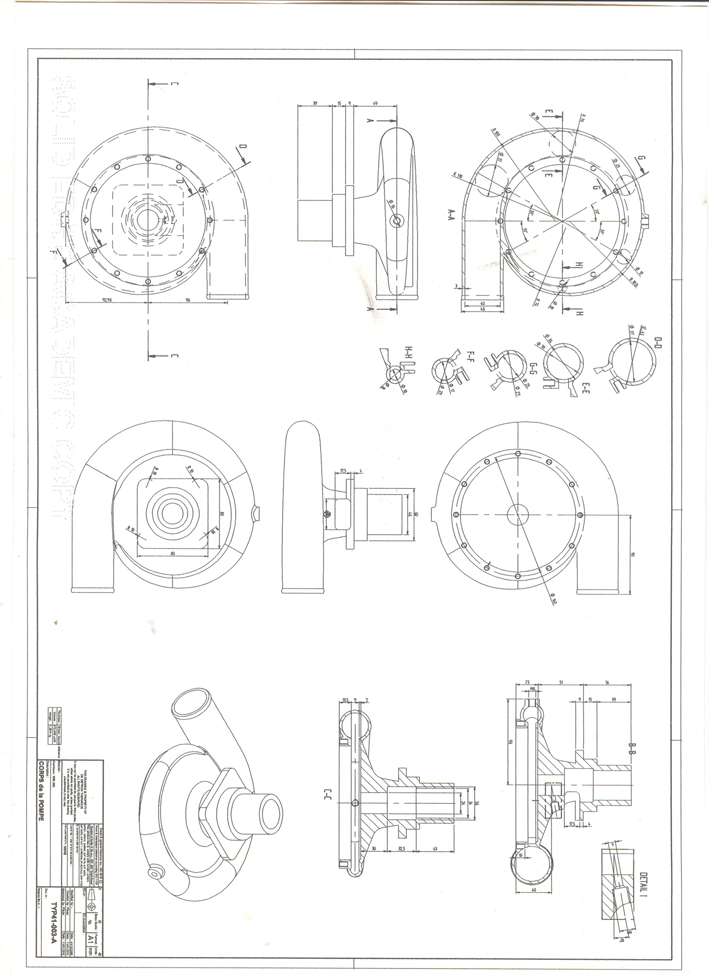

it took a while ,I thought, it comes a little earlier . Do you like this one better? :wink:


Attachments:
udo plan 004.jpg
udo plan 004.jpg [ 168.2 KiB | Viewed 8380 times ]
Top
 Profile

 Post subject: Re: Royale Progress
PostPosted: Sat May 05, 2012 7:15 am
Offline
Site Admin
User avatar

Joined: Wed May 12, 2004 4:26 pm
Posts: 2620
Location: Reeuwijk, The Netherlands
On the cross section, leave the pump vanes that are not crossed out, as they only make for confusion. Took me a while to figure out.

On shape I cannot comment, I did not carry around T41 waterpumps lately.

So you are making a Royale? Show some pictures!

_________________
Vive la Marque !!


Top
 Profile

 Post subject: Re: Royale Progress
PostPosted: Sat May 05, 2012 11:35 am
Offline
User avatar

Joined: Thu Jan 12, 2006 9:18 am
Posts: 1008
Location: Netherlands, Nieuwegein
Which of the two drawings is correct, as they are quite different!

_________________
www.BugattiPage.com
www.BugattiRevue.com
www.BugattiAircraft.com


Top
 Profile

 Post subject: Re: Royale Progress
PostPosted: Sat May 05, 2012 12:27 pm
Offline

Joined: Wed Aug 13, 2008 12:10 am
Posts: 334
I regret to tell you Udo- I fear that this years crop of strawberries is completely wiped out.
That drawing is just as wrong as the other one. The original drawings of the water pump are very faded and there was an early and a late version. What are you copying from/


Top
 Profile

 Post subject: Re: Royale Progress
PostPosted: Sat May 05, 2012 2:51 pm
Offline

Joined: Sun Aug 16, 2009 3:17 am
Posts: 1041
Location: Baden-Baden Germany
the first drawing is the water pump for the Type 5 . Second one is new made from the original Royale drawing . As you can read , this drawings are made at " De Dietrich " . the only place today to build historically Bugatti parts . Almost historically. But there is no other place with a connection to Bugatti like De Dietrich . And all happens in Bugatti`s first original workshop .


Top
 Profile

 Post subject: Re: Royale Progress
PostPosted: Sat May 05, 2012 6:05 pm
Offline

Joined: Wed Aug 13, 2008 12:10 am
Posts: 334
Still totally wrong though...


Top
 Profile

 Post subject: Re: Royale Progress
PostPosted: Sat May 05, 2012 7:18 pm
Offline

Joined: Sun Aug 16, 2009 3:17 am
Posts: 1041
Location: Baden-Baden Germany
I did not compare the new drawing with the original . What is for example wrong ?


Top
 Profile

 Post subject: Re: Royale Progress
PostPosted: Sun May 06, 2012 12:54 pm
Offline

Joined: Wed Aug 13, 2008 12:10 am
Posts: 334
For example, everything is wrong. While it resembles a generic Bugatti water pump, it is wrong in every detail, apart perhaps for the inlet pipe.
Why are you going to such trouble to redraw all of this if you don't have the correct info to start with.
What are you doing it for?


Top
 Profile

 Post subject: Re: Royale Progress
PostPosted: Sun May 06, 2012 2:42 pm
Offline

Joined: Sun Aug 16, 2009 3:17 am
Posts: 1041
Location: Baden-Baden Germany
This drawing is made from the " Original Royale " drawing . But next week I will look at it if realy everything is wrong .If realy all is wrong , it would be a surprise .


Top
 Profile

 Post subject: Re: Royale Progress
PostPosted: Sun May 06, 2012 3:16 pm
Offline

Joined: Wed Aug 13, 2008 12:10 am
Posts: 334
Prepare to be surprised...


Top
 Profile

 Post subject: Re: Royale Progress
PostPosted: Sun May 06, 2012 3:39 pm
Offline

Joined: Mon Oct 19, 2009 6:28 pm
Posts: 180
I find the royale enigma a little odd, who is going to buy the 4 anglo german replicas that are now being built up? There will soon be more recreations than originals, with GP's I see the benafit of racing recreations of 3 of 5 cars but replica royales puzzle me?


Top
 Profile

 Post subject: Re: Royale Progress
PostPosted: Sun May 06, 2012 5:37 pm
Offline

Joined: Sun Aug 16, 2009 3:17 am
Posts: 1041
Location: Baden-Baden Germany
We got an order from an Hotel chain to build some Royales . This cars will have a Bugatti engine , but not the Royale engine . I hope we can make one with the Royale engine .
