 Post subject: ROYALE STREET ROD
PostPosted: Thu Aug 16, 2012 7:12 pm
Offline

Joined: Mon Jun 18, 2012 5:30 pm
Posts: 12
A 20 year dream is becoming a reality. I hope this project at least projects the spirit of this majestic beauty.


Attachments:

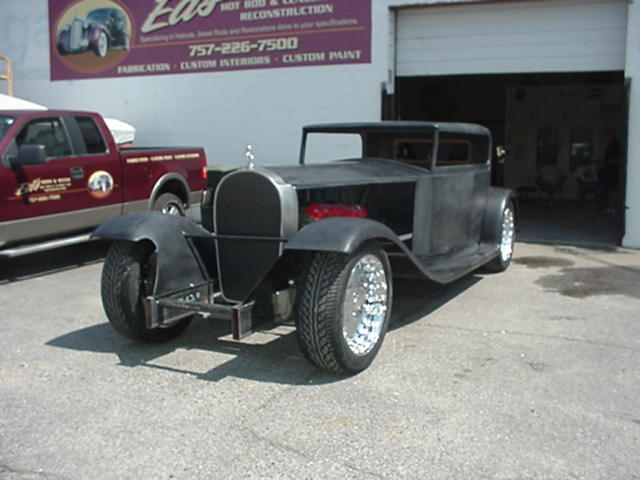

MVC-003S.JPG [ 43.34 KiB | Viewed 9477 times ]
MVC-002S.JPG [ 59.89 KiB | Viewed 9477 times ]

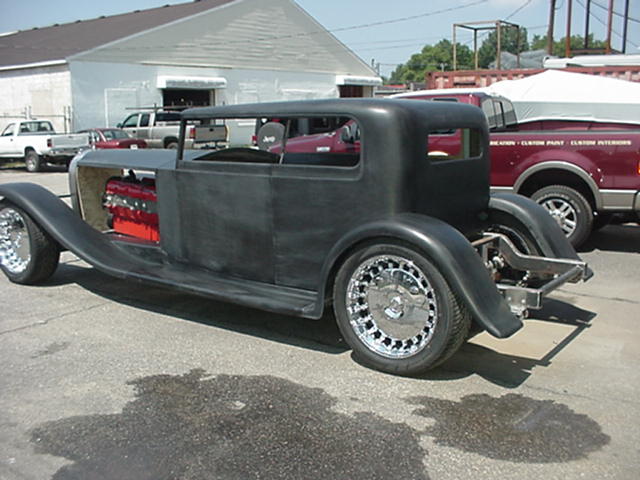

MVC-001S.JPG [ 54.7 KiB | Viewed 9477 times ]
Top
 Profile

 Post subject: Re: ROYALE STREET ROD
PostPosted: Fri Aug 17, 2012 7:09 am
Offline
Site Admin
User avatar

Joined: Wed May 12, 2004 4:26 pm
Posts: 2620
Location: Reeuwijk, The Netherlands
Tell us more! Wheelbase, engine, etc. Looks good!

_________________
Vive la Marque !!


Top
 Profile

 Post subject: Re: ROYALE STREET ROD
PostPosted: Fri Aug 17, 2012 7:35 am
Offline
User avatar

Joined: Thu Jan 12, 2006 9:18 am
Posts: 1008
Location: Netherlands, Nieuwegein
The Kellner Coach body has exactly the same appearance as the original, the fenders a lot less, being much flatter. I take that is intentional?

Nice wheels! They look like Chrysler Atlantic's. but bigger?

And your engine? It's long, V12 or V16?

Will it be presented at Pebble Beach?

Great how you put the (original size looking) radiator just a lot lower!

Detail I don't like: The very high chassis rails at the front....

_________________
www.BugattiPage.com
www.BugattiRevue.com
www.BugattiAircraft.com


Top
 Profile

 Post subject: Re: ROYALE STREET ROD
PostPosted: Fri Aug 17, 2012 3:52 pm
Offline

Joined: Mon Jun 18, 2012 5:30 pm
Posts: 12
Thanks for the feedback. after a year of building this was the first time we had the car rolling so we could roll it out of the shop and stand back and see what we have created.
Myself and a friend Ron Dyer are building the car we started a year ago. the body is fabricated in what is called the cold molding process,forms were set and a foam core 1/2" thick was shapped over them then 7 layers of CARBON FIBER CLOTH was applied. the forms were removed one at a time and 7 more layer of CARBON FIBER was applied to the interior. we have used approximatly 200 yards of material so far and not done yet.the A and B pillers are fadricated out of 3/16" steel and boxed.
DETAILS
169" wheelbase
24" rims
35.5" tall tires (150MPH speed rating)
702CU.IN. 11.5 liter V12 ( THUNDER 12)
51IN. to the top of the grill shell from the ground
The fenders have been widened to the inside to make room for steering(the tires are 13" wide)
Front frame rails will be cut to shape after frontbumper is fabricated.
Thanks for the input good or not so good. Our vision is to produce a street rod that pays tribute to this magnificent car while being able to be enjoyed by many.


Attachments:
MVC-016S.JPG [ 57.01 KiB | Viewed 9437 times ]
MVC-001S.JPG [ 48.89 KiB | Viewed 9437 times ]
MVC-003S.JPG [ 45.17 KiB | Viewed 9437 times ]
Top
 Profile

 Post subject: Re: ROYALE STREET ROD
PostPosted: Sat Aug 18, 2012 9:48 am
Offline
Site Admin
User avatar

Joined: Wed May 12, 2004 4:26 pm
Posts: 2620
Location: Reeuwijk, The Netherlands
If you want to bulk up the carbon fiber, try and source some carbon fiber multiaxial (non crimp fabric) which can be much heavier, reducing the price per pound drasticly. It also saves you from quite some labour.

Another thing is that you should not mount metal parts directly onto the carbon fiber. Especially with moisture the metal can dissolve quite rapidly. (not a major concern for a car in a dry climate, but over here it can be problematic.)
Isolate the carbon fiber with glass fabric, or use plastic bushes.

_________________
Vive la Marque !!


Top
 Profile

 Post subject: Re: ROYALE STREET ROD
PostPosted: Sun Aug 19, 2012 1:46 pm
Offline

Joined: Mon Jun 18, 2012 5:30 pm
Posts: 12
We isolate the steel in a high density epoxy filler before we put the epoxy impregnated Carbon FIBER on. I looked at that material but decided on the plain weave with a multi cross layup to transfer stress evenly.but thanks for reminding me I can use the fabric in some internal areas.
We entered the car in the Chesapeake Va. Shriners show Saturday great responce and turns out large BUGATTI fan base.


Attachments:
MVC-002S.JPG [ 44.87 KiB | Viewed 9388 times ]

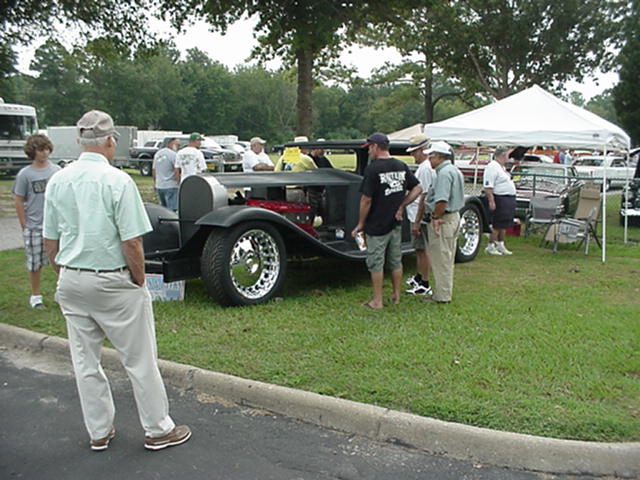

MVC-008S.JPG [ 70.08 KiB | Viewed 9388 times ]

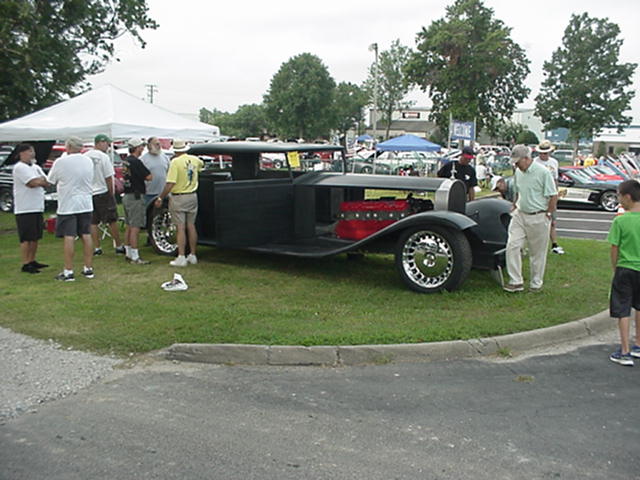

MVC-009S.JPG [ 59.68 KiB | Viewed 9388 times ]
Top
 Profile

 Post subject: Re: ROYALE STREET ROD
PostPosted: Thu Aug 30, 2012 5:14 am
Offline

Joined: Fri Jul 23, 2010 1:29 pm
Posts: 18
Those whirring sounds you hear are Le Patron, his son Jean, Mons. Kellner and Briggs Cunningham spinning in their graves.


Top
 Profile

 Post subject: Re: ROYALE STREET ROD
PostPosted: Thu Aug 30, 2012 9:17 am
Offline

Joined: Fri Nov 11, 2011 6:00 am
Posts: 9
Location: West Australia
It might not be one for the purists, but anyone with even an ounce of automobile fabrication knowledge should be able to appreciate the workmanship that appears to have gone into this. Even the great Ettore was able to acknowledge others.
Infact the purists should be very happy..... these guys aren't rodding an original. But they clearly enjoy the shape & beauty of the original.

As a bit of a street rod enthusiast myself, I commend your work. Interesting idea to use carbon fibre to lay-up both the inside and outside of the car, rather than the traditional rod method of glass outer and steel or timber inner.

Is the engine from a Viper?


Top
 Profile

 Post subject: Re: ROYALE STREET ROD
PostPosted: Thu Aug 30, 2012 9:56 am
Offline
Site Admin
User avatar

Joined: Wed May 12, 2004 4:26 pm
Posts: 2620
Location: Reeuwijk, The Netherlands
Indeed. It is not called a Bugatti, there are no Bugatti parts in it, and no BS story is being made up to make it into a Bugatti. I like it!

_________________
Vive la Marque !!


Top
 Profile

 Post subject: Re: ROYALE STREET ROD
PostPosted: Thu Aug 30, 2012 7:48 pm
Offline

Joined: Mon Jun 18, 2012 5:30 pm
Posts: 12
I'm confused I thought the WHIRRING sounds was from them enjoying the fact that even a blurred mirror image of his 80 year old car still creates great joy and excitement in others.no sarcasim intended just enjoying this great venture.
The engine is a 1960-65 GMC 702 CU. IN. done by THUNDER V12

Thanks again for your feedback


Top
 Profile

 Post subject: Re: ROYALE STREET ROD
PostPosted: Thu Sep 19, 2013 7:14 pm
Offline

Joined: Mon Jun 18, 2012 5:30 pm
Posts: 12
After a year of work all done but some details. their are a lot of build pictures on my web site.
http://WWW.edsrodsandrecks.com
The side panels for the hood are in paint now.
thanks for the comments in advance ed m


Attachments:

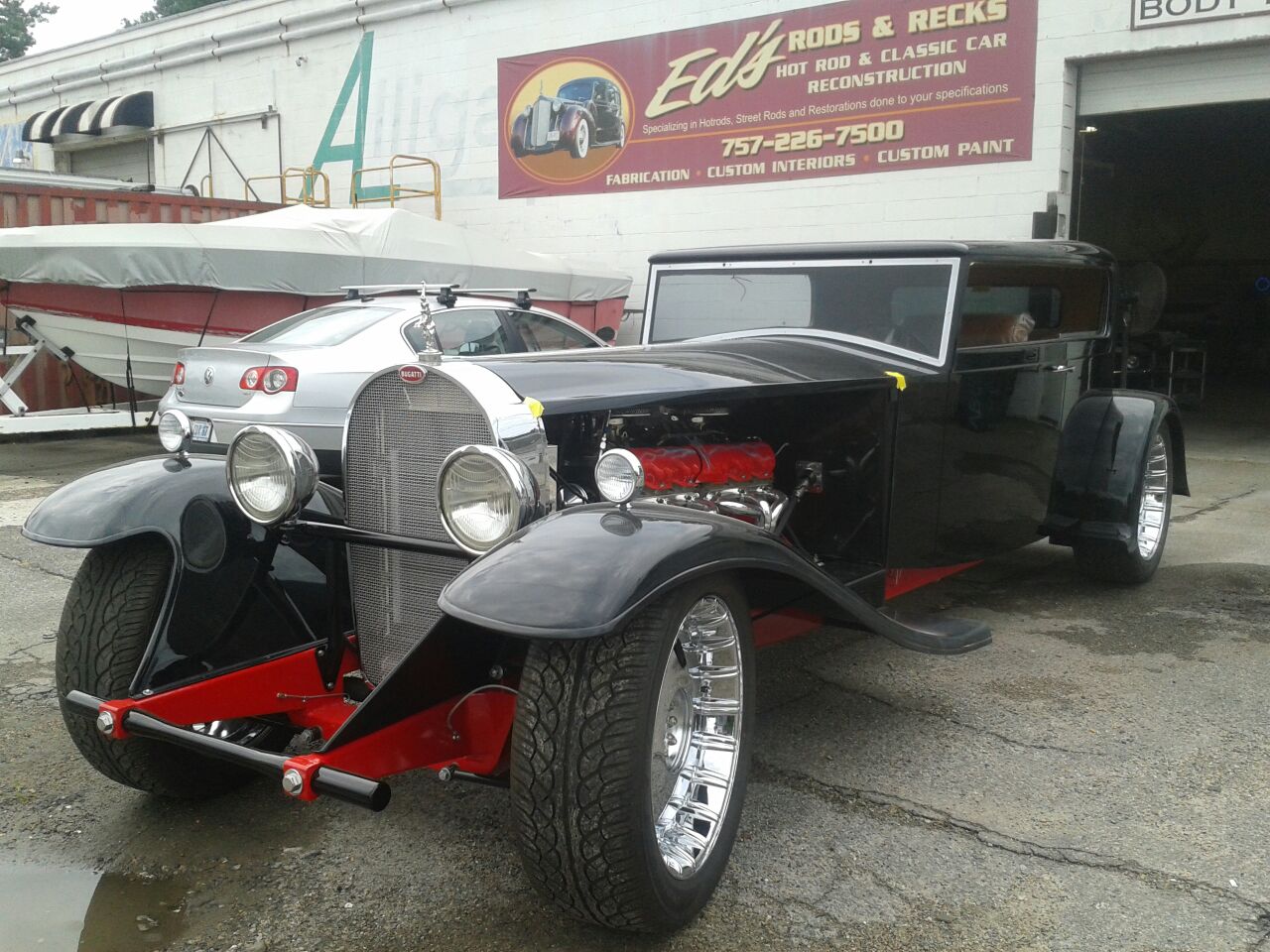

photo.JPG [ 235.99 KiB | Viewed 8547 times ]

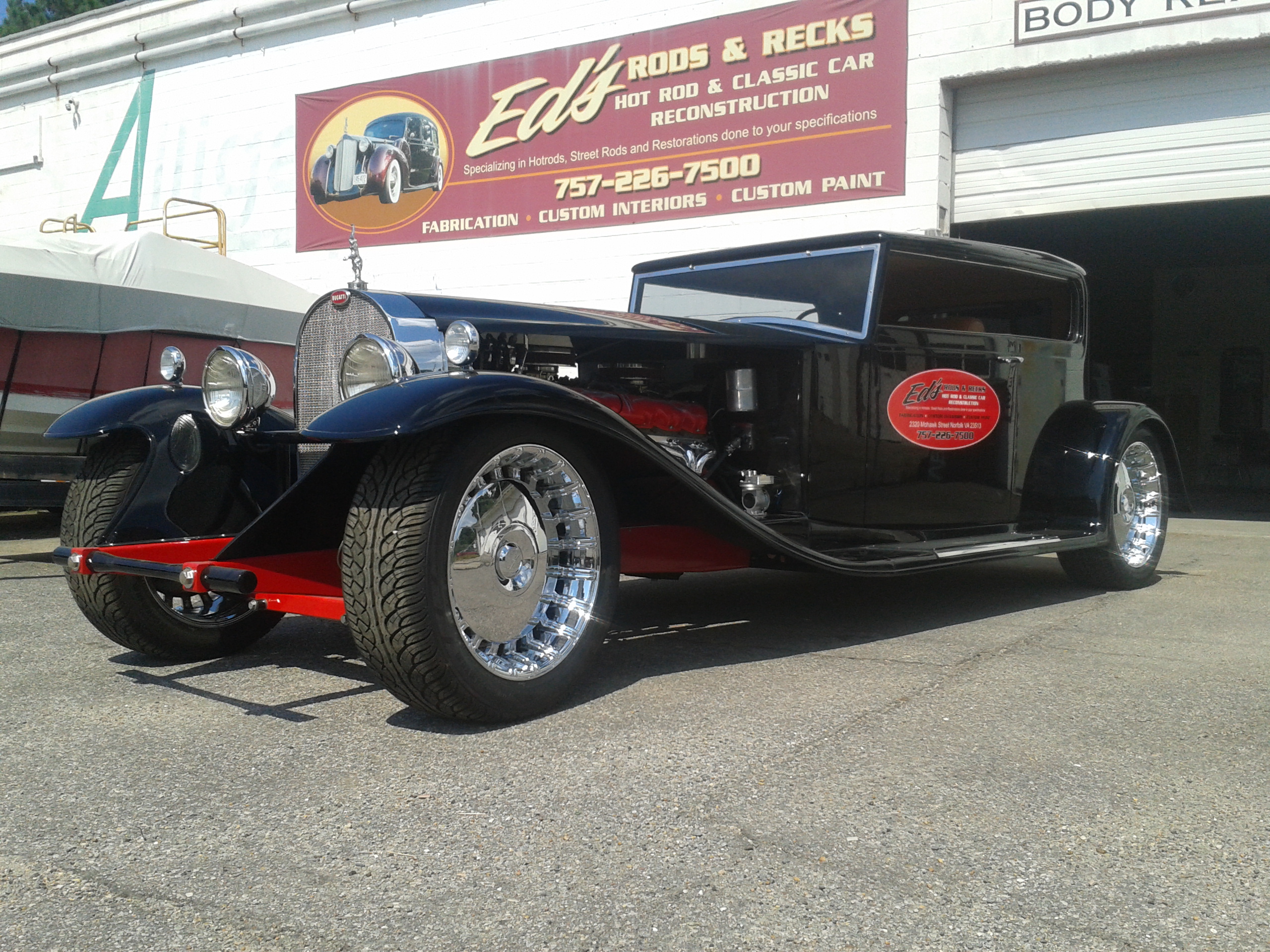

20130908_141315 (1).jpg
20130908_141315 (1).jpg [ 1.91 MiB | Viewed 8547 times ]

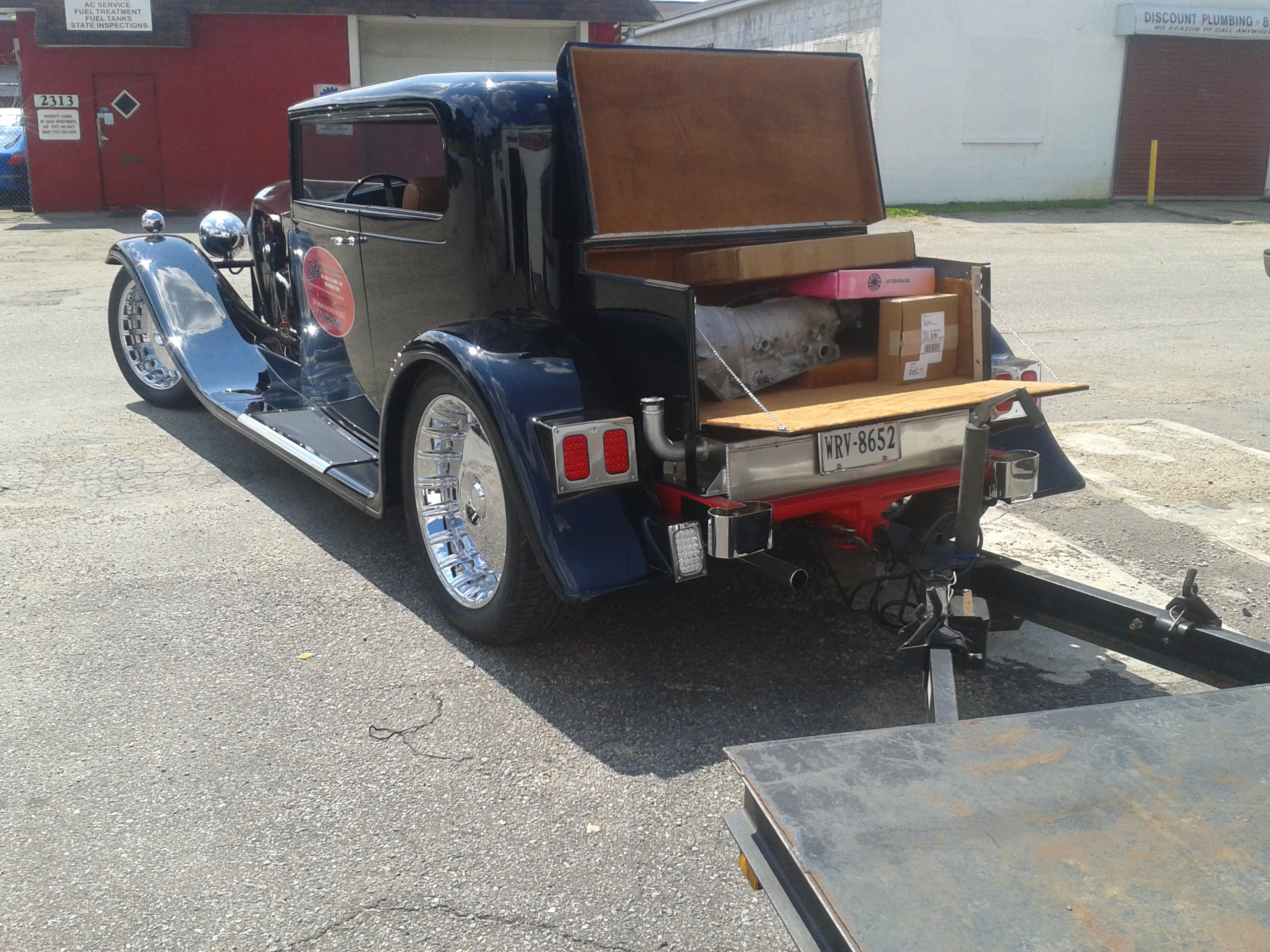

20130908_140534.jpg [ 1.91 MiB | Viewed 8547 times ]
Top
 Profile

 Post subject: Re: ROYALE STREET ROD
PostPosted: Thu Sep 19, 2013 7:25 pm
Offline

Joined: Mon Jun 18, 2012 5:30 pm
Posts: 12
Trying to get pictures smaller.


Attachments:
IMG_2088.JPG [ 59.38 KiB | Viewed 8546 times ]

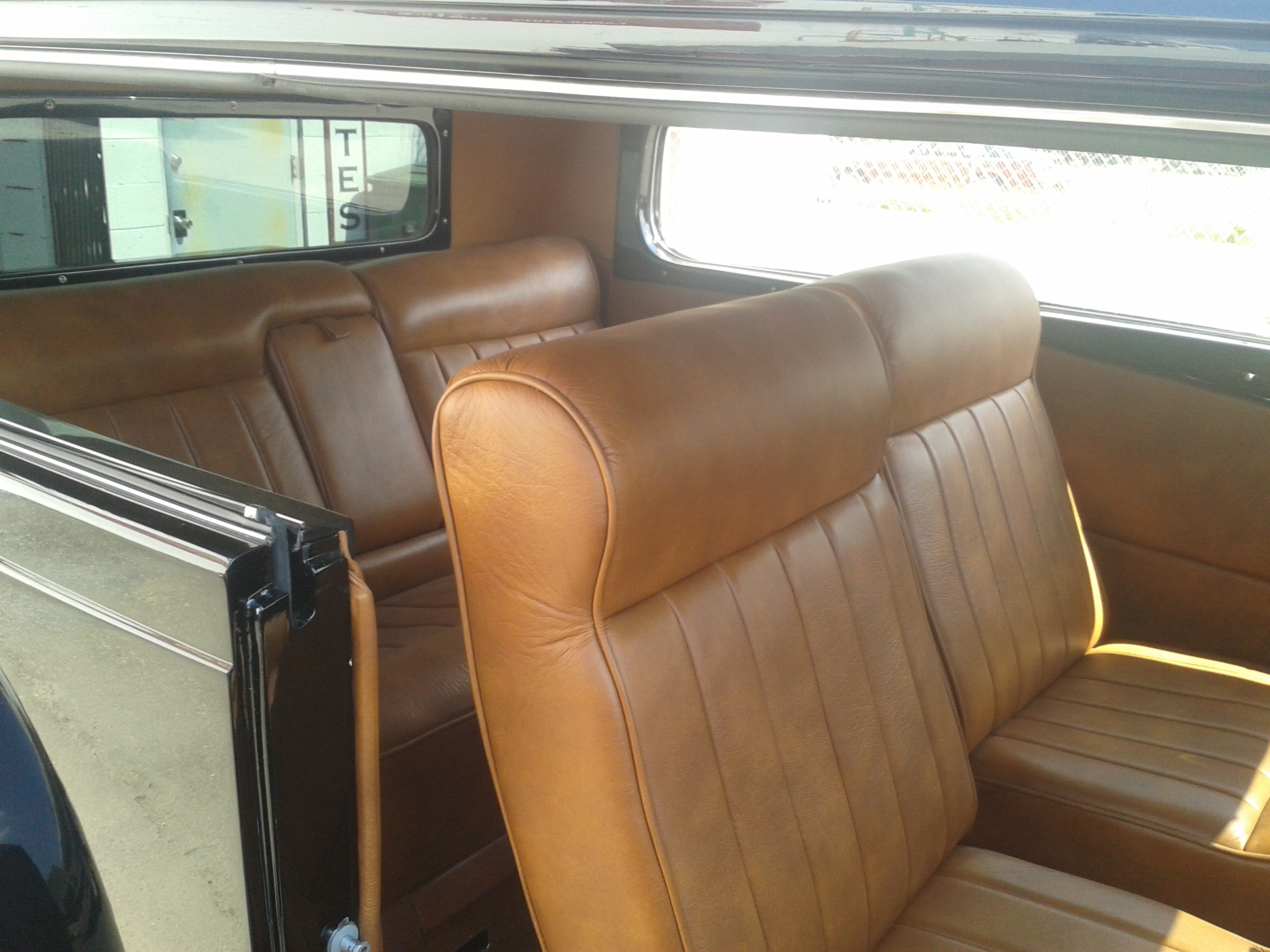

20130908_141451.jpg [ 1.34 MiB | Viewed 8546 times ]

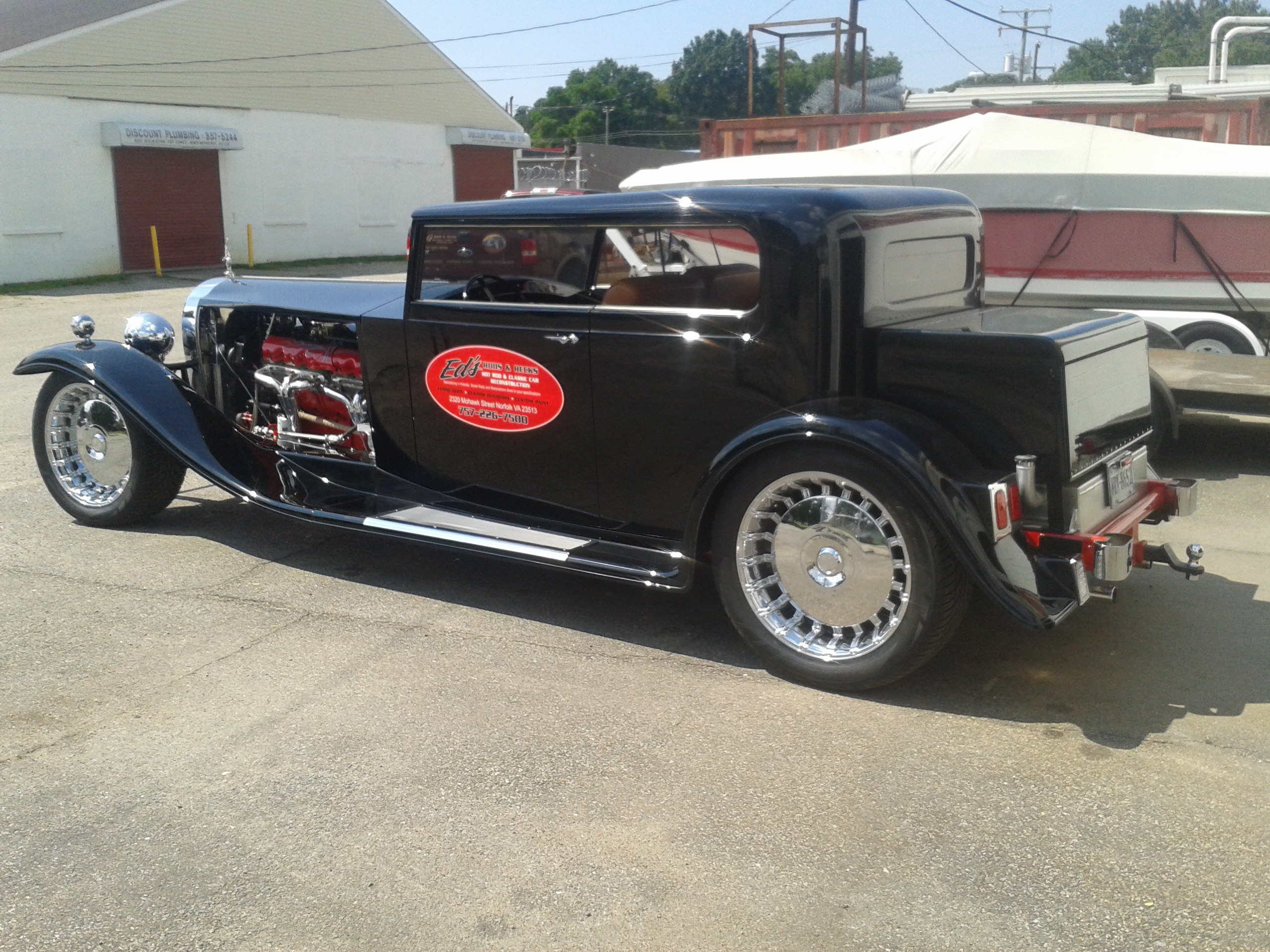

20130908_141346.jpg [ 1.79 MiB | Viewed 8546 times ]
Top
 Profile

 Post subject: Re: ROYALE STREET ROD
PostPosted: Thu Sep 19, 2013 7:51 pm
Offline
Site Admin
User avatar

Joined: Wed May 12, 2004 4:26 pm
Posts: 2620
Location: Reeuwijk, The Netherlands
I really like what I see. Also the tow hook.

Unfortunately no flat screens, and boom box in the rear.

_________________
Vive la Marque !!


Top
 Profile

 Post subject: Re: ROYALE STREET ROD
PostPosted: Tue Nov 19, 2013 2:37 pm
Offline

Joined: Wed Sep 03, 2008 8:56 am
Posts: 82
If you like it Herman, it is now on Ebay, only 1.2 million. Almost nothing compared with an Original Royale!


Top
 Profile

 Post subject: Re: ROYALE STREET ROD
PostPosted: Wed Nov 20, 2013 8:02 am
Offline
Site Admin
User avatar

Joined: Wed May 12, 2004 4:26 pm
Posts: 2620
Location: Reeuwijk, The Netherlands
I cannot find it?

_________________
Vive la Marque !!


Top
